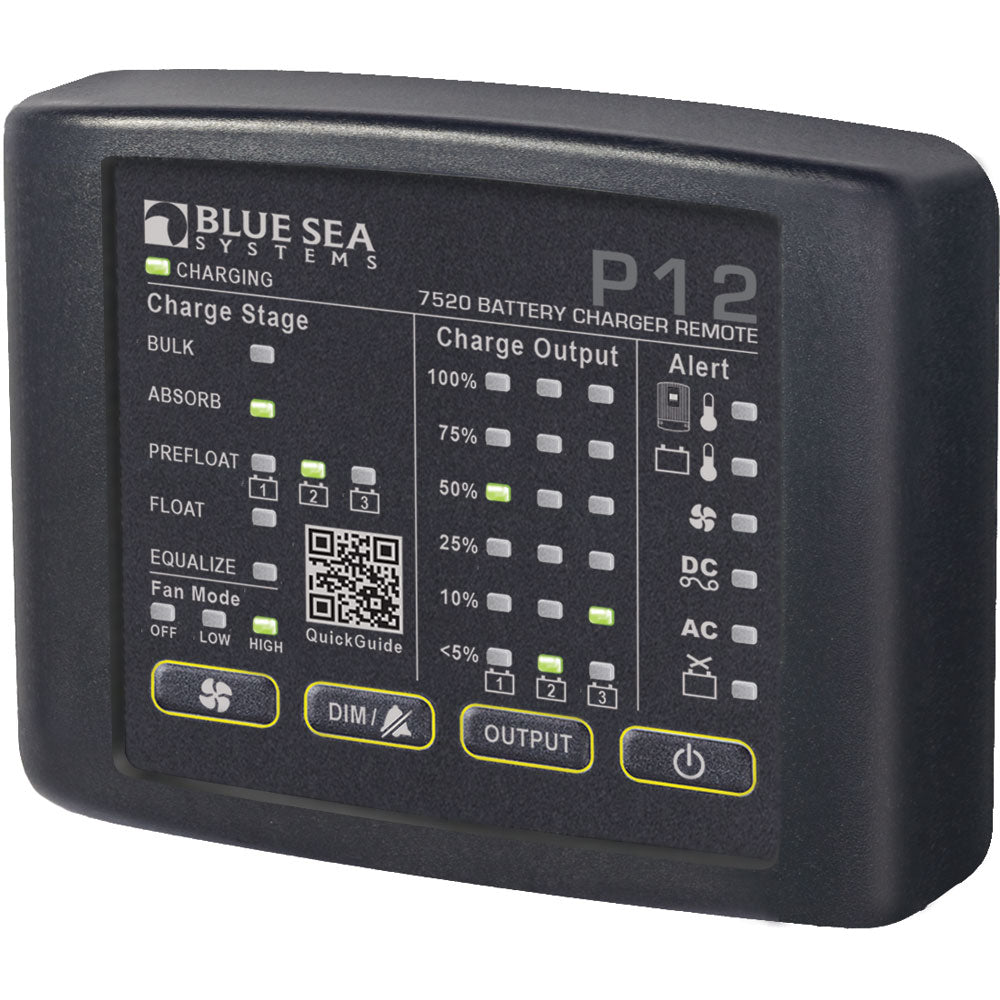

• Charging LED- Quick check for green light confirms charging

• Charge Stage- Displays charging stage

• Equalize LED- Indicates the charger is currently in equalization mode

• Fan Mode- Indicates charger's internal fan mode

• Charge Output- Displays the percentage of output current for each battery. Will also indicate maximum output setting when maximum output is adjusted to accommodate for AC source limitations

• Alert- Icon LEDs provide warning and alert status for quick diagnostics

• Fan- User adjustable settings

• Dim/ Alarm- Provides adjustment to brightness of LEDs on display as well as Silence function for alarms

• Output- User adjustable charger output when AC source limitations exist that require lowering the AC current draw

• Power- Places P12 Battery Charger into standby mode
