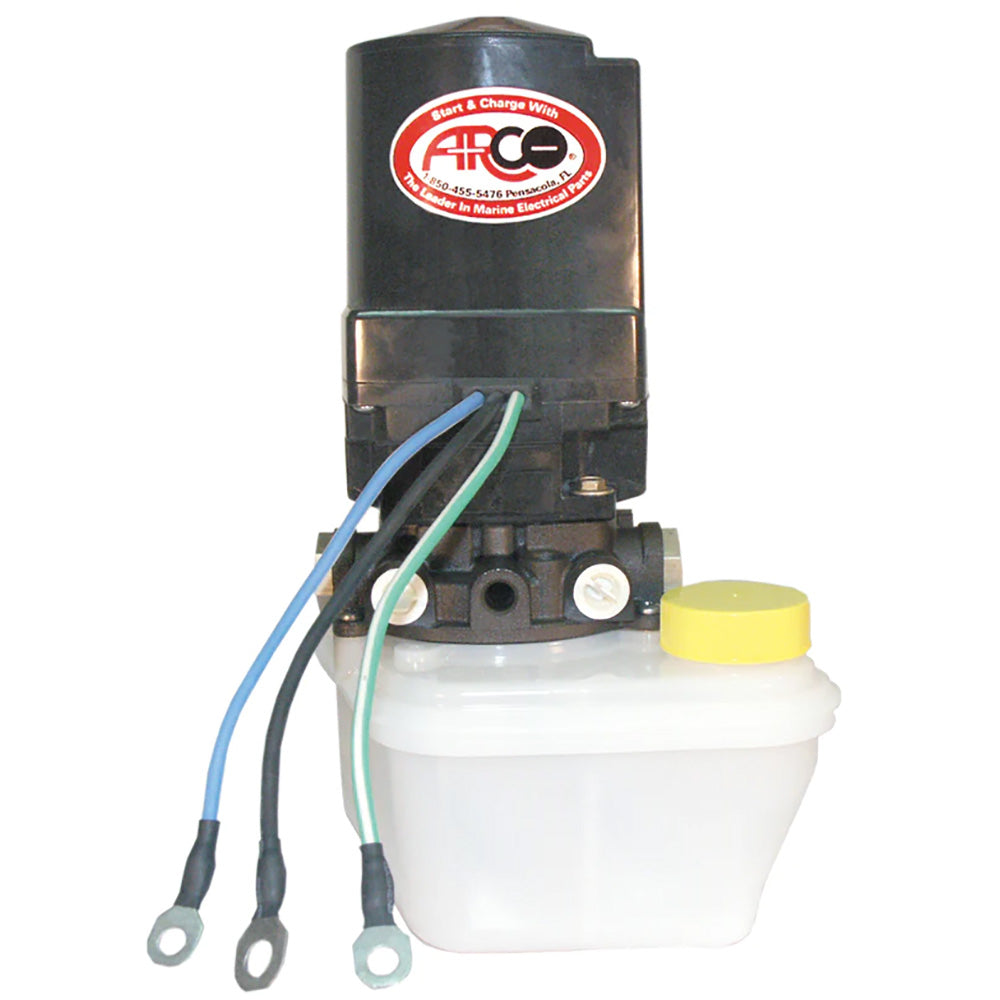

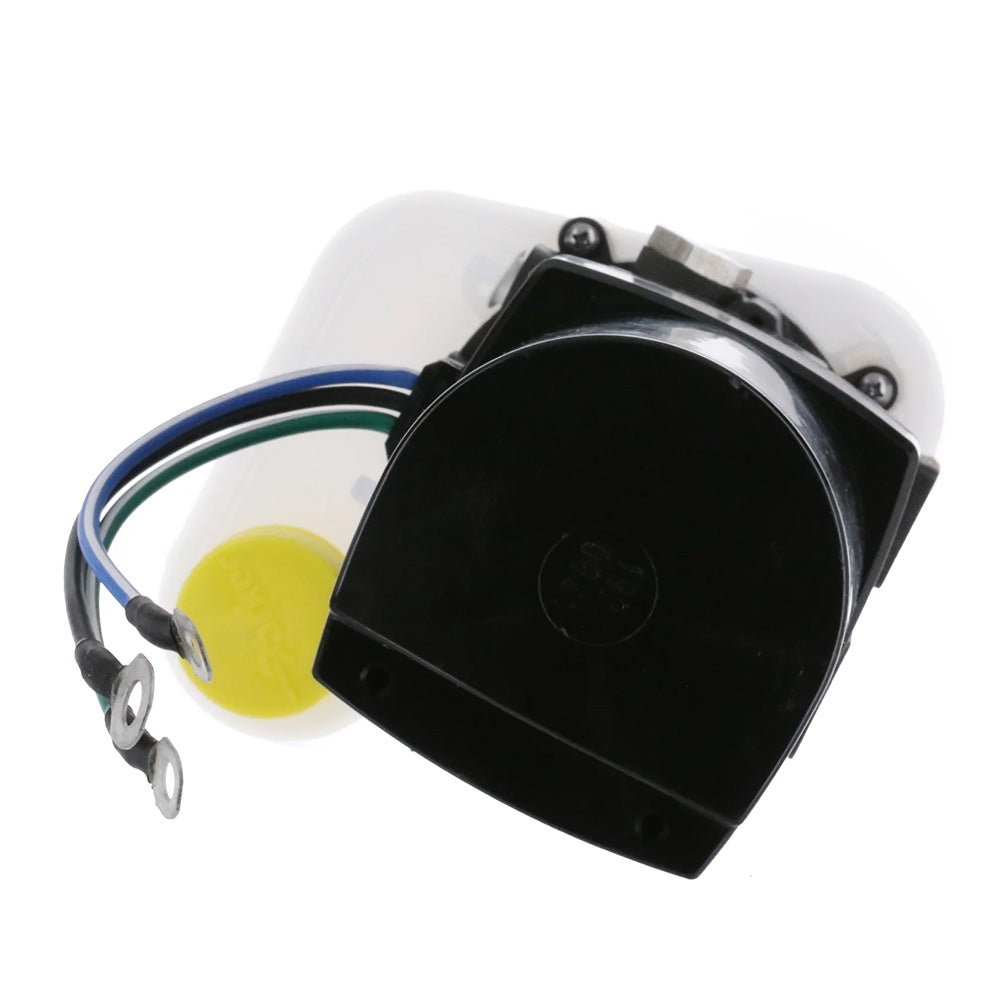

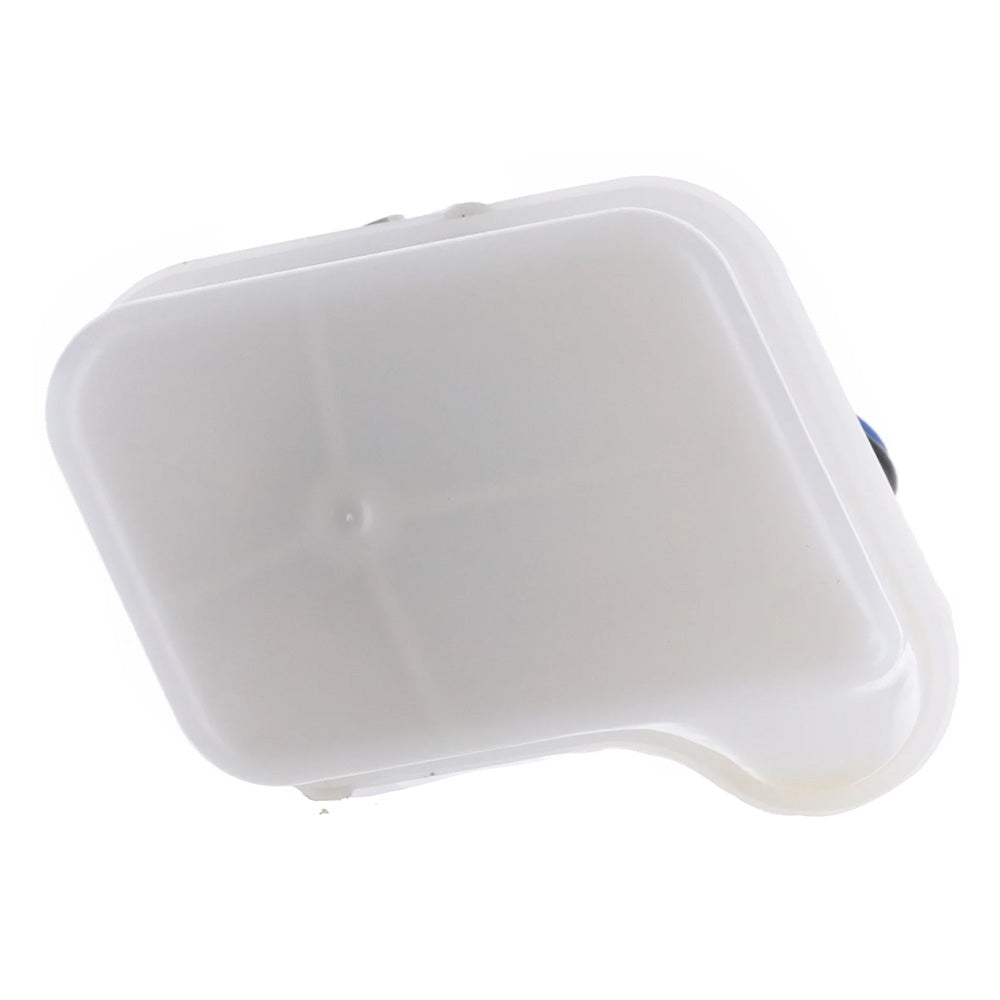

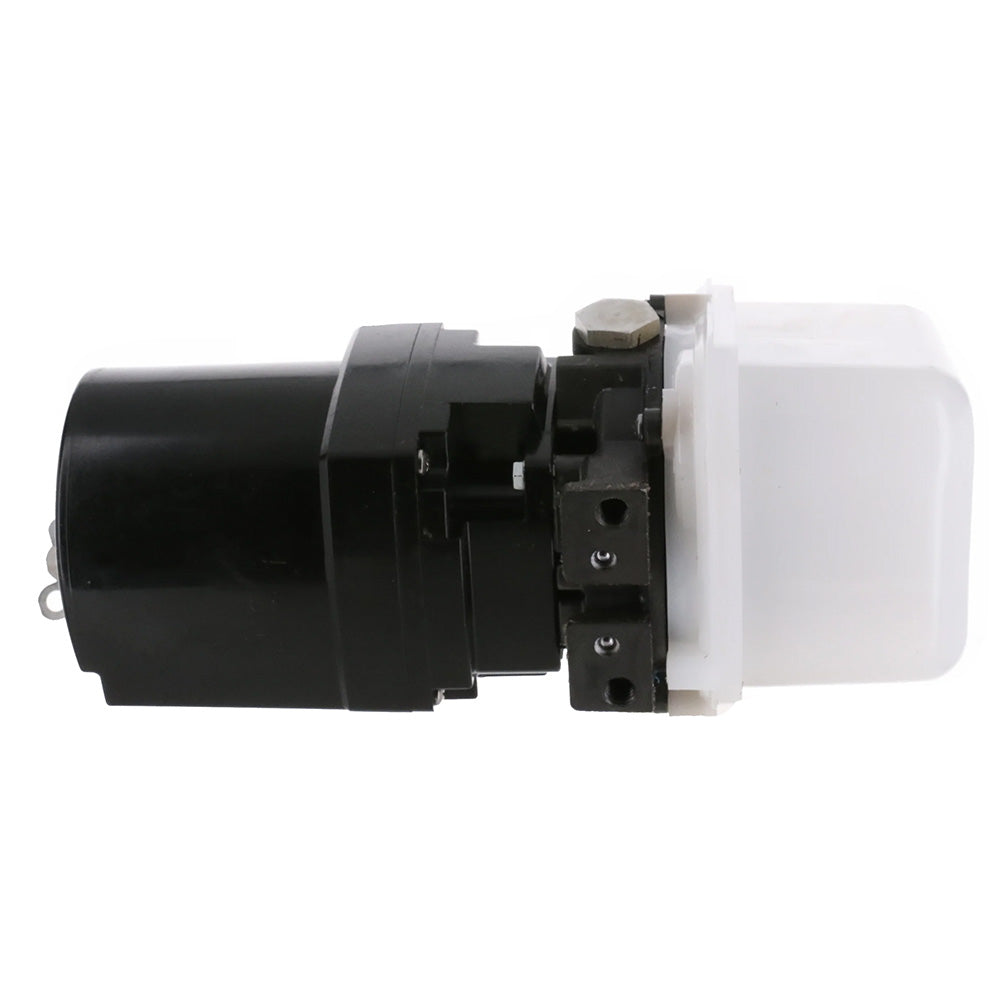

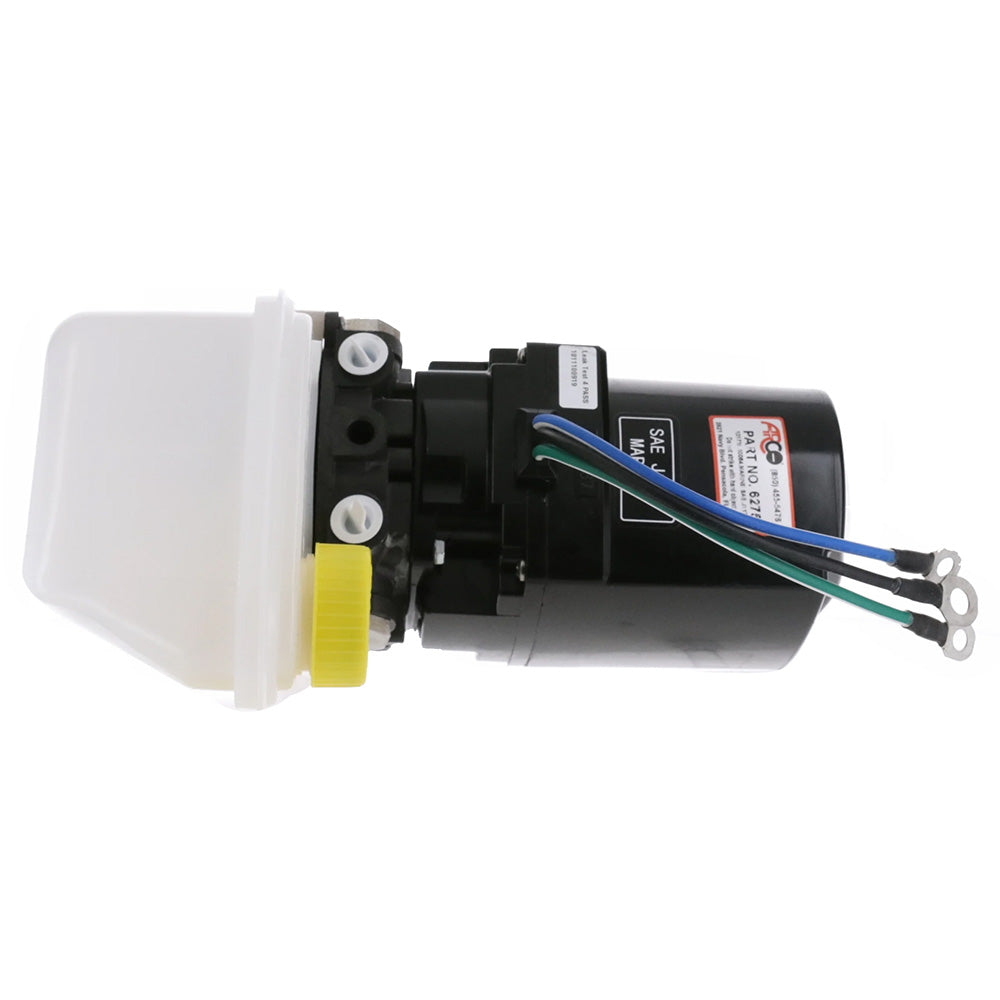

Premium Replacement Tilt Trim Motor for Late Model Mercruisers with Oildyne Pump

Replacement outboard tilt trim motor that will fit late model Mercruiser w/Oildyne pump, Ring Terminal Ends.

ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.

Features:

• Tilt trim motors are dynamically tested to ensure out-of-the-box performance
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance
• Epoxy Powder coated for maximum insulation protection

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

• MERCURY 14336A6
• MERCURY 14336A8
• MERCURY 14336A9
• MERCURY 14336A12
• MERCURY 14336A15
• MERCURY 14336A17
• MERCURY 14336A20
• MERCURY 14336A25
• MERCURY 14336A31
• MERCURY 865380A03
• MERCURY 865380A13
• MERCURY 88183A5
• MERCURY 88183A6
• MERCURY 88183A8
• MERCURY 88183A11
• MERCURY 88183A12
• MERCURY 88183A13
• MERCURY 88183A25
• SERRA 18-6769 / 18-6769-1
• SIERRA 18-6813
